Pipes
Production
Dal 2003 Cimolai è attiva nella produzione di tubi LSAW di grande diametro e spessore per strutture Off-Shore e applicazioni Oil & Gas, per il settore delle energie rinnovabili e le costruzioni.

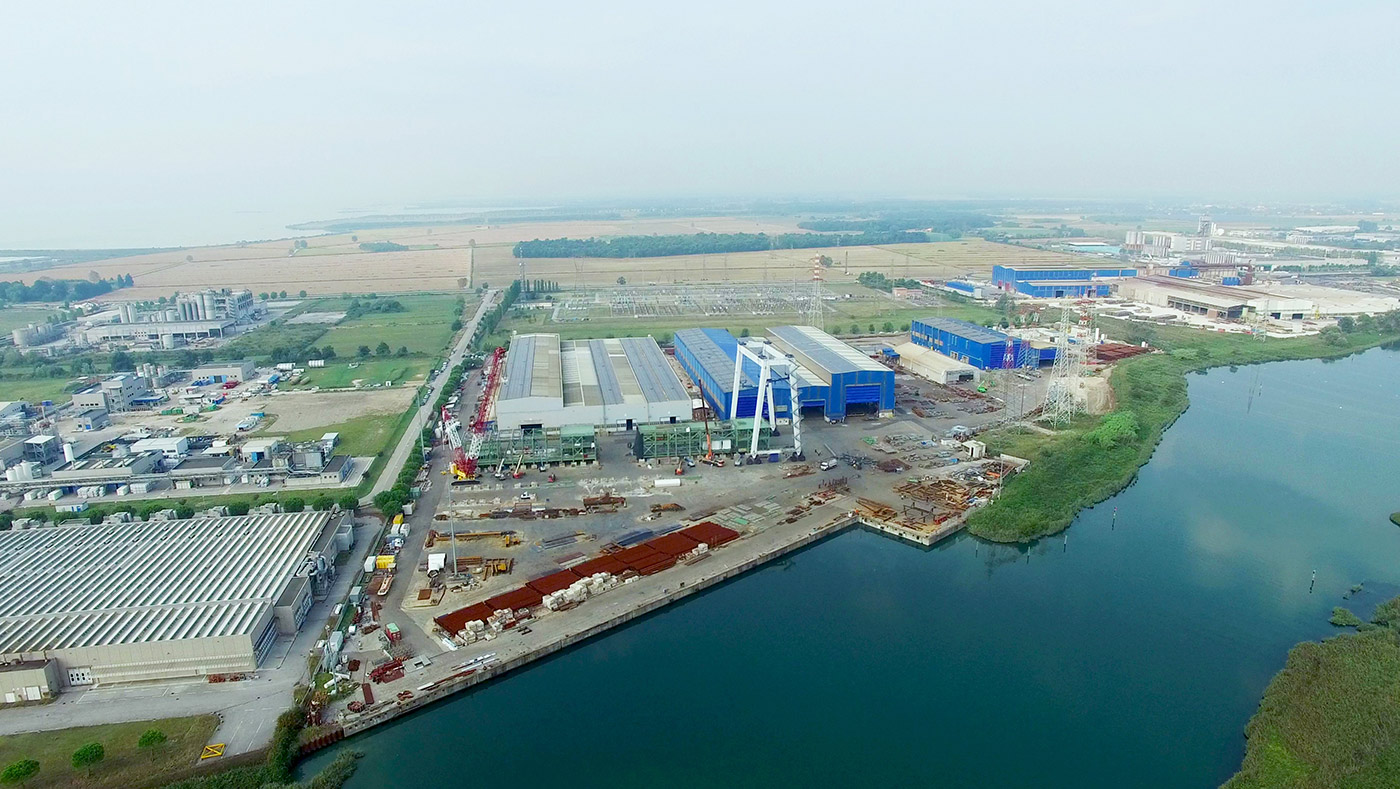

The Cimolai pipe mill in San Giorgio di Nogaro (UD), with access to the Adriatic Sea, covers 180,000 sqm (60,000 covered) and features a 200 m private quay with a 7 m draft. The equipment handles components of all sizes: 350 t overhead crane, SPMTs, telescopic/crawler cranes, strand jacks, and lifting towers.
Experience

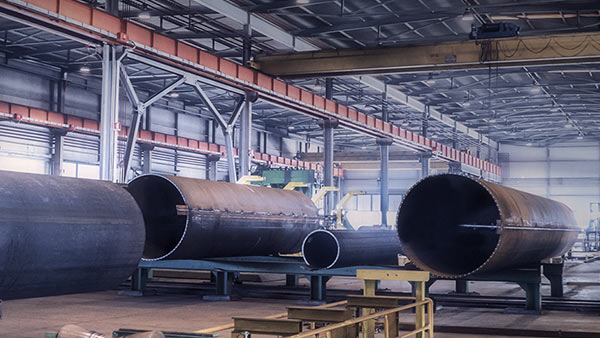

LSAW Pipe Production
Cimolai acquista le lamiere per la produzione di tubi esclusivamente da primarie acciaierie qualificate. Nella selezione dei fornitori vengono valutati diversi parametri, tra cui le normative applicabili, la classe del materiale, eventuali requisiti aggiuntivi, nonché la larghezza, lo spessore, il peso delle lamiere e i tempi di consegna richiesti. È inoltre possibile eseguire commesse utilizzando lamiere fornite dal cliente in conto fornitura.
Material Grades
EN Standard Structural Pipes
- Norma EN
- Snervamento: da 355 MPa fino a 830 MPa
API 5L Standard Line Pipes
- PSL 2:
- Sour Service (Annex H):
- Offshore Service (Annex J):
Tubi di processo Norma ASTM
- A671: tubi in acciaio per impieghi atmosferici e a bassa temperatura
- A672: tubi in acciaio per servizi ad alta pressione a temperatura moderata
- A691: tubi in acciaio al carbonio e legato per servizi ad alta pressione ad alta temperatura
Pressure Vessel Pipes
- P355 NL / NL2
- P460 NL1 / NL2
- SA302 Gr. B
Focus
One Pipe for Everything
Cimolai Heavy Lift has a large fleet of vehicles and equipment such as telescopic and lattice cranes, high-capacity self-propelled modular trailers (SPMTs), temporary jetties and hydraulic jacks with different load capacities and strokes.
Competence / Expertise
High engineering and welding expertise to handle even the most complex structures with safety and reliability.
Guaranteed Timelines
Defined and guaranteed production times for precise scheduling of site and project activities.
Continuous Quality
Constant quality control along the entire production line, with punctual checks at every phase of the process.
Less Waste
Reduction of scrap and related costs thanks to optimized processes and greater control over materials.
Constant Operations
Production independent of weather conditions, with operational continuity even in difficult situations.
Maximum Precision
Millimetric coupling of pieces to guarantee tight tolerances and high structural performance.
Quick Assembly
Solutions designed for simple and fast assembly, reducing installation times on site.
Reduced Site Costs
Lower storage and handling costs for pipes on site thanks to more efficient logistics.
Operational Reliability
Greater system reliability with fewer operational criticalities during laying, assembly, and use.
Less Manpower
Overall reduction of necessary manpower, resulting in optimization of total costs.
Reduced Construction Time
Decrease in transit times on site, to deliver the finished work more quickly and under control.
Tubi in acciaio di grande diametro
Press Bending
Range of Structural Pipes:
Diametro Esterno 457 – 2.032 mm (18” – 80”)
Spessore 9,53 – 95 mm (3/8” – 4”)
Lunghezza Max 15.100 mm (49.54 ft)
Range of Process Pipes:
Diametro Esterno 457 – 1.574 mm (18” – 62”)
Spessore 9,53 – 76,2 mm (3/8”-3”)
Lunghezza Min 6.096 mm (20 ft)
Lunghezza Max 15.100 mm (49.54 ft)
Roll Bending / Rolling
Production Range:
Diametro Esterno Min 914 mm (36”)
Spessore 9,53 – 127 mm (3/8”- 5”)
Lunghezza Max 3.050 mm (10 ft)
Available Machinery
Macchine da taglio Oxy – Plasma
Bordatrici
Calandratrici
Macchine per saldatura esterna
Macchine per saldatura esterna
Molatrici
Sistemi per il trattamento termico
Controllo dimensionale automatizzato
Sistemi hydrotest
Cianfrinatrici
Presse piegatrici
Accosta lembi
Fresatrici longitudinali
Portali di saldatura
Presse calibratrici
Intestatrici tubi
Controllo UT automatizzato
Bunker RX
Catalog
Products and Applications
Individual processes (design, procurement, manufacturing, delivery, and assembly) are managed by a dedicated team of engineers specialized in complex project management, ensuring compliance with time, costs, and safety (HSE).
Energy
Strutture Offshore
Pipes and cones for offshore structures of oil platforms and wind farms.
Energy
Strutture Offshore
Process pipes for petrochemical plants, power generation, refineries, and pipeline terminals.
STEEL FABRICATION
Civil Construction
Structural pipes for stadiums, bridges, and buildings.
Special Projects
Special Pieces
Pipes for bends and pipes for slug catchers (resistant to H2S corrosion and stress corrosion cracking). Tubular elements cut to size (profiling) and ready to be assembled on site.
